HERA TwinStick2-LED

Extremely Compact Linear LED Lighting

HERA TwinStick2-LED

Extremely Compact Linear LED Lighting with Integrated Connecting System

Hera's TwinStick2-LED has an extremely high light output, similar to T5 fluorescent light fixtures, these compact strips are ideal for commercial applications such as store fixtures or displays and even in closet and cabinet applications. Low energy consumption and virtually no maintenance (life time 50,000 hours) are additional benefits. TwinStick2-LEDs feature an integrated connecting system.

Product Features

Aluminum and plexiglas housing
Extremely small dimensions: width: 11/16", height: 5/16"
Light fixture can be recessed (flush with board) or surface mounted
Available in two different sizes: 8" (3.0 W) and 12" (4.4 W)
Stocked in 3000K and 4100K
Available from 2700K to 6500K by special order
50,000 hours useable life
Extremely high, even light output
EPH certified to NSF/ANSI 2 for use in food zones
Approved for use in closet applications
For unlimited runs order one Feed-In Twinstick for every 8'

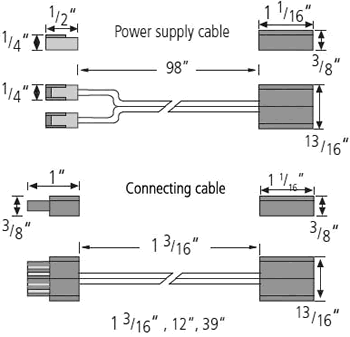

LED connecting cables are available in 1 3/16", 12" and 39" lengths
Power supply cable 98" to be ordered separately
To be used with 24 Vdc LED driver
Dimmable with optional accessories
Inline Dimmer Switch with 4 position light level:
100%, 50%, 25%, off

Step 1: Select TwinStick2-LED Light Fixtures

HERA TwinStick2-LED
High Output Miniature Linear LED Lighting

Double the light output of Stick2-LED, HERA TwinStick2-LED is ideal for commercial applications such as store fixtures or displays. Ultracompact miniature double strips of LED lighting feature very high even light output and an integrated connecting system.

3000K
8" (3 W)	TWINSTICK2/8/WW
12" (4.4 W)	TWINSTICK2/12/WW
12" Feed-In Stick	TWINSTICK2/WPC/WW
4100K
8" (3 W)	TWINSTICK2/8/CW
12" (4.4 W)	TWINSTICK2/12/CW
12" Feed-In Stick	TWINSTICK2/WPC/CW
