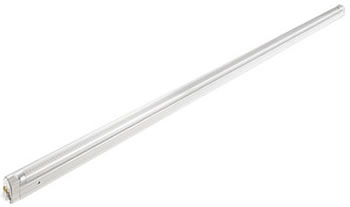

HERA SlimLite XL-LED Linear LED

Linear LED Lighting with Integrated Electronic Driver

HERA SlimLite XL-LED

SlimLite XL-LED is the easiest way to upgrade from current SlimLite XL fluorescent fixtures to LED. Just unplug the existing fixture, plug in the new one to existing power cords and you are on your way to energy efficient and low maintenance displays. SlimLite XL-LED is also the perfect solution for new installations. With the same light output as T5 fluorescent, this LED uses only half the energy and offers double the lamp life.

Product Features

  • LED with integrated electronic driver
  • Energy Efficient. 1' (3.5 W), 2' (6.7 W), 3' (10.8 W) and 4' (14.5 W)
  • Stocked in 3000K and 4100K
  • Available from 2700K to 6500K by special order
  • 50,000 hours useable life
  • Good color rendering, CRI > 85
  • Plug-in modular system allows for easy installation and continuous lighting
  • Approved for use in closet applications
  • Optional plexiglas cover available (to be ordered separately)

Step 1: Select HERA SlimLite XL-LED Fixtures (includes LED tube)

HERA SlimLite XL-LED

Upgrade from current HERA SlimLite XL fluorescent fixtures to LED. Just unplug the existing fixture, plug in the new one to existing power cords.

Linear LED Lighting with Integrated Electronic Driver

Warm White:
 1' (3.5 W) 12 7/8" ES12LED/WW
 2' (6.7 W) 23 1/8" ES22LED/WW
 3' (10.8 W) 34 7/8" ES34LED/WW
4' (14.5 W) 46 3/4" ES46LED/WW
Cool White:
 1' (3.5 W) 12 7/8" ES12LED/CW
 2' (6.7 W) 23 1/8" ES22LED/CW
 3' (10.8 W) 34 7/8" ES34LED/CW
4' (14.5 W) 46 3/4" ES46LED/CW

Includes LED Tube
NOTE: Power cords and connecting cables are also available with 90º or straight connectors in varying lengths

Step 2: Select Power Cord


Power Cords

Power Cords with Plug

6' SPC/XL/R

Power Cords with Switch

6' with switch SPC/S/XL/R

Power cords and connecting cables are also available with 90° or straight connectors and in various lengths.

Step 3: Select Connections

Connecting Cables

6" SCC6/XL/R
1' SCC12/XL/R
2' SCC24/XL/R
4' SCC48/XL/R
6' SCC72/XL/R
10' SCC120/XL/R

Power cords and connecting cables are also available with 90° or straight connectors and in various lengths.

Direct Connector

SDC/XL/R

Optional Accessories

Hardwire Box

  SHWC/XL/R
with switch SHWC/S/XL/R

On/Off Rocker Switch

SRS/XL/R

Optional Plexiglas Cover

for ES12LED SPLEX12/R
for ES22LED SPLEX22/R
for ES34LED SPLEX34/R
for ES46LED SPLEX46/R
