Tech Lighting CP Screw-on Display Fixtures 700CPSO

Designed with a special screw-on bracket to fit lightweight Portable booths. Leave two screws in or on top of the wall for quick mounting of the keyhole bracket. Complete with plug-in transformer with in-line switch and 10' cord. Specify 50 or 75 watts. 12 volt, MR16 lamp not included. See accessory for maximum wattage usage.

Installation: Leave two screws in or on top of the wall for quick mounting of the keyhole bracket. Complete with 12 volt, 75 watt plug-in transformer and 10' cord, plugs into a standard outlet.

CP Screw-On with 50 watt transformer: low-voltage, Halogen MR16 lamp up to 50 watts (not included). CP Screw-On with 75 watt transformer: low voltage, Halogen MR16 lamp up to 75 watts (not included).

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

Finish: Black or Chrome
Wattage: 50 Watt or 75 Watt

Tech Lighting CP1 Clamp-on Light Display Fixtures 700CP1

Lightweight and versatile, CP1 features a universal clamp that provides a secure grip on any surface shape—from 1/2" pipe to 4" wall. Complete with 12 volt plug-in transformer with in-line switch and 10' cord. Chrome arms with black or white clamp. Specify 50 or 75 watts. 12 volt, MR16 lamp not included. See accessory for maximum wattage usage.

Installation: 10 foot cord and plug with 50 watt or 75 watt 12 volt transformer (included). No tools necessary to install or to replace lamp.

CP1 with 50 watt transformer: low-voltage Halogen MR16 lamp up to 50 watts (not included). CP1 with 75 watt transformer: low-voltage Halogen MR16 lamp up to 75 watts (not included).

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

CP Cord Extender List

Use to add an additional 8' of cord to CP1 and DJ connector ports. Use to add an additional 8' of cord to CP1 and DJ connector ports

Available Finishes: Black, White

Tech Lighting DisplayJack

The cleanest, easiest display lighting solution yet.

Select a mounting option:

• 4" round canopy
• 2" square canopy
• Connector ports
• 4" round swivel canopy
• DJ Screw-on

Simply push the DisplayJack element's arms into the canopy or port. After the show, pull the DisplayJack element out. The canopy or ports stay in place for next time. No need for an electrician.

More Information on DisplayJack Mounts Below >

Tech Lighting Display Jack DJ-Archie Lite Clamp Fixtures 700DJARCH

17.5" long, with a 10" high swooping curve. Pivots at head to direct beam. 12 volt, MR16 lamp of up to 75 watts (not included). Chrome finish. See accessory for maximum wattage usage.

Installation: Install a Display Jack canopy or connector ports (sold separately) and push the DJ-Archie's arm's into the canopy or ports. After the show, pull out DJ-Archie—the canopy or ports stay in place for next time with no need for an electrician.

More Information on DisplayJack Mounts Below >

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

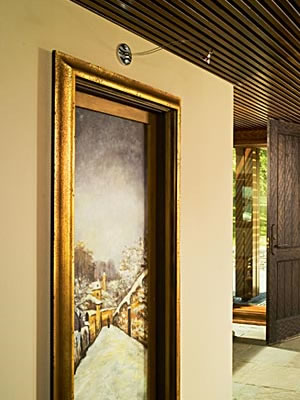

Tech Lighting DJ-Georgi Display Jack Fixtures 700DJGRGC

700DJGRGC DJ-Georgi

18" long with a 3" high gentle curve. Pivots at head to direct beam. 12 volt, MR16 lamp of up to 75 watts (not included). Chrome finish. See accessory for maximum wattage usage.

Installation: Install a Display Jack canopy or connector ports (sold separately) and push the DJ-Georgi's arm's into the canopy or ports. After the show, pull out DJ-Georgi—the canopy or ports stay in place for next time with no need for an electrician.

More Information on DisplayJack Mounts Below >

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

Tech Lighting DJ-Telescope Display Jack Fixtures 700DJTEL

700DJTELC DJ-Telescope

Telescopes from 9" to 25". Pivots at head to direct beam 12 volt, MR16 lamp of up to 75 watts (not included). Chrome finish. See accessory for maximum wattage usage.

Installation: Install a Display Jack canopy or connector ports (sold separately) and push the DJ-Telescopes arm's into the canopy or ports. After the show, pull out DJ-Telescope—the canopy or ports stay in place for next time with no need for an electrician.

More Information on DisplayJack Mounts Below >

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

Tech Lighting DJ-Wally Lite Display Jack Fixtures 700DJWAL

700DJWAL12C DJ-Wally Lite 12"
700DJWALC DJ-Wally Lite 24"

Available in two lengths. Pivots at head to direct beam. Field-cuttable. 12 volt, MR16 lamp of up to 75 watts (not included). Chrome finish. See accessory for maximum wattage usage.

Installation: Install a Display Jack canopy or connector ports (sold separately) and push the DJ-Wally Lite's arm's into the canopy or ports. After the show, pull out DJ-Wally—the canopy or ports stay in place for next time with no need for an electrician.

More Information on DisplayJack Mounts Below >

Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory

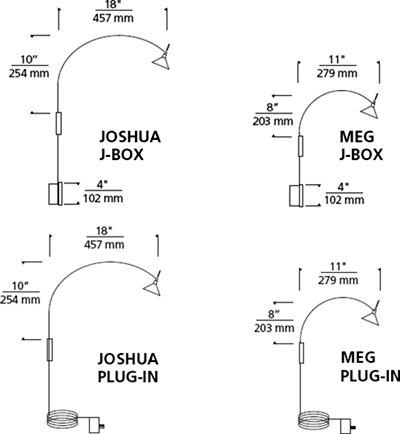

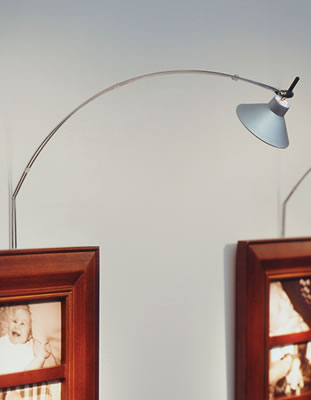

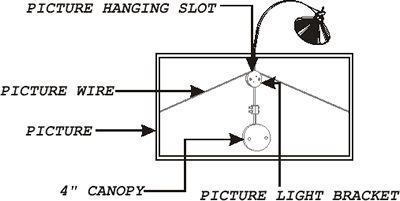

Tech Lighting Joshua and Meg Picture Lights 700JOS, 700MEG

These elegant, unobtrusive picture lights are designed to properly illuminate your artwork and eliminate glare. Choose a lamp that will provide the proper beam spread. By changing lamps or adding a lens, you can light an area as small as f our inches square or as large as four feet square!

Both Joshua and Meg are available to plug in or junction box mount. Plug-in version has 10' cord with in-line switch and plug-in transformer. Each includes 12 volt 60 watt transformer, matching Lil Wok accessory, lens holder clip, and UV-protected MR16 lamp.

Joshua and Meg junction box are dimmable with a standard Incandescent dimmer.

Joshua J-box and Meg J-box are dimmable with a standard Incandescent dimmer.

Chrome, gold, black. LAMP Low-voltage 12 volt Halogen MR16 up to 50 watts or less. (UV-protected 50 watt 38o MR16 included with Joshua, 20 watt 36o MR16 lamp included with Meg.)

Lil Wok accessory with Snap Louver Lens Holder included. Diffusor or Spread Lens available separately.

Type: Joshua or Meg
Mounting: J-Box Mount or Plug-in

Finish: Chrome, Gold (Brass) or Black

Lil Wok Accessory 700LMPCO

700LMPCOB Black
700LMPCOS Silver
700LMPCOZ Antique Bronze

Each Meg or Joshua picture light includes a matching Lil Wok accessory, lens holder clip, and UV-protected MR16. Additional accessories may be ordered.

Can hold a single lens or louver.
Silver and black for MR16 of up to 50 watts.
Antique Bronze for MR16 up to 20 watts only.

3" x 1.6"
Decorative metal shade reduces backlight from MR16. Includes Snap Louver Lens Holder. Holds a single lens or louver.

Finish: Antique Bronze, Black or Satin Nickel

Available for use on CP1, DJ-Archie, DJ-Georgi, DJ-Telescope, DJ-Wally Lite, Joshua Ceiling, K-Giro, K-Johnny, K-Pivot, K-Telescope, LC-Archie, LC-Georgi, LC-Wally Lite, Metal Man, MO-Pivot, Parachute, Swivel, Tele, Wall Archie, Wall Georgi, Wall Telescope, Wally Lite (sold separately).

Tech Lighting Joshua Ceiling Lights

Joshua comes in a range of lengths to bring the light right where you need it. Joshua pivots left to right and the lamp rotates 330°.
Specify chrome arms with chrome or black canopy. May be dimmed with a standard Incandescent dimmer. Custom lengths and bends available.

Compatible accessories and optical controls (sold separately): Backlight Shield, Barndoors, Cone Glass Shield, Eggcrate Louver, Flight Paper, Glass Lens, Lil Egypt, Lil Wok, Louver Lens Holder, MR16 Snout, Round Glass Shield, Snap Louver Holder or Taza Accessory.

Tech Lighting Joshua Ceiling Light with 2" Canopy 700JS2C

2" square flush canopy mounts to our special 2" square, 6" deep junction box (included). Electronic transformer fits inside junction box.
For ceiling only. 3" length: 12 volt, MR16 up to 50 watts.
Other lengths: 12 volt, MR16 up to 75 watts.
Lamp not included.

Length: 3", 76", 12", 36", 60", 72"

Finish: Black or Chrome

Tech Lighting Joshua Ceiling Light with 4" Round Flush Canopy 700JSC

4" round flush canopy mounts to a standard 4" square junction box with round plaster ring (provided by electrician). Electronic transformer fits inside junction box.
3" to 24" versions for wall or ceiling mount.
36" to 72" versions for ceiling only.
3" length: 12 volt, MR16 up to 50 watts.
Other lengths: 12 volt, MR16 up to 75 watts.
Lamp not included.

Length: 3", 76", 12", 36", 60"

Finish: Black or Chrome

Tech Lighting Lil Wonder 700F2

700F2 Lil Wonder

Just 4" tall, Lil Wonder goes anywhere! The canopy can screw onto a wall or sit on the floor. Automatic shut-off if tipped over. Complete with 12 volt plug-in transformer with in-line switch and 10' cord and 35 watt MR11 lamp.

Finish: Black, Satin Nickel or White

Tech Lighting Lil Big Wonder 700F1

A compact, powerful accent lamp with a plug-in transformer, 4.75" tall. The canopy can screw onto a wall or sit on the floor. Automatic shut-off if tipped over. Complete with 12 volt plug-in transformer with in-line switch and 10' cord and 50 watt MR16 lamp.

Finish: Black, Satin Nickel or White

Tech Lighting Display Jack 4" Round Canopy

700DJ4RF 4" Round Canopy

Mounts to a standard 4" junction box with round plaster ring (provided by electrician).
12 volt, 75 watt electronic transformer (included) fits inside junction box.

Finish: Chrome or black.

Select a DisplayJack Fixture >

Tech Lighting Display Jack 2" Square Canopy

700DJ2SQ6 2" Square Canopy

Mounts to our special 2" square, 6" deep junction box (included).
12 volt, 75 watt electronic transformer (included) fits inside junction box.

Finish: Chrome or black.

Select a DisplayJack Fixture >

Tech Lighting Display Jack Connector Ports

700DJFCPC Connector Ports

Install these two receptacle ports through panel up to 4" thick. Access to back of panel required. 12 volt, 75 watt plug-in transformer with 10' cord plugs into a standard outlet. Chrome only.

Select a DisplayJack Fixture >

Tech Lighting Display Jack 4" Round Swivel Canopy

700DJ4RS 4" Round Swivel Canopy

Mounts to a standard 4" junction box with round plaster ring
(provided by electrician). 12 volt, 75 watt electronic transformer
(included) fits inside junction box. Fixture pivots up and down
at canopy.

Finish: Chrome or black.

Select a DisplayJack Fixture >

Tech Lighting Display Jack Screw-On

700DJSOC DJ Screw-On

Designed with a special s crew-on bracket to fit lightweight Portable booths. Leave two screws in or on top of wall for quick mounting of the keyhole bracket. Complete with 12 volt, 75 watt plug-in transformer and 10' cord. Chrome only.

Select a DisplayJack Fixture >

CP Cord Extender List

Use to add an additional 8' of cord to CP1 and DJ connector ports. Use to add an additional 8' of cord to CP1 and DJ connector ports

Available Finishes: Black, White
