Lutron Plates, Switches, Dimmers and Accessories

Lutron Gloss Finishes

White (WH)	Ivory (IV)	Almond (AL)	Light Almond (LA)
Gray (GR)	Brown (BR)	Black (BL)

Gloss Matte Finish available on these Designer Style Products

Spacer System
Dimmers
Switches

Maestro IR
Dimmers

Radio RA
Dimmers
Switches

Maestro
Dimmers
Switches
Fan Controls

Diva
Dimmers
Switches
Fan Controls

Skylark
Dimmers
Fan Controls

Accessories
Receptacles/GFCI's
Phone/cable jacks
Multi-port frames
Wallplates (1-6 openings)

Gloss Matte Finish available on these Traditional Style Products

Ariadni
Dimmers
Fan Controls
Available colors:
WH, IV, AL, LA, BR, BL

Glyder
Dimmers
Available colors:
WH, IV

Rotary
Dimmers
Fan Controls
Available colors:
WH, IV

Lutron Soft Matte Finishes

White
(WH)

Ivory
(IV)

Almond
(AL)

Light Almond
(LA)

Soft Matte Finish available on these Traditional Style Products

Qoto
Dimmers
Switches

Wallplates
(1-6 Openings)

Lutron Satin Finishes

Hot (HT)	Merlot (MR)	Plum (PL)	Turquoise (TQ)
Sea Glass (SG)	Taupe (TP)	Eggshell (ES)	Biscuit (BI)**
Snow (SW)	Palladium (PD)	Midnight (MN)	Sienna (SI)
Terracotta (TC)	Greenbriar (GB)	Bluestone (BG)	Mocha Stone (MS)
Goldstone (GS)	Desert Stone (DS)	Stone (ST)	Limestone (LS)

Satin Finish available on these Designer Style Products

RadioRA
Dimmers
Switches

Maestro
Dimmers
Switches
Fan Controls

Diva
Dimmers
Switches
Fan Controls

Accessories
Receptacles/GFCI's
Phone/cable jacks
Multi-port frames
Wallplates (1-6 openings)

Satin Finish available on these Architectural Style Products

Nova T*
Dimmers
Switches
AC shading
Systems
Fan controls

Nova
Dimmers
Switches

Vareo
Dimmers
Switches
GRAFIK Systems

Keypads
GRAFIK Systems
Sivoia QED

Accessories†
Receptacles/GFCI's
Phone/cable jacks
Multi-port frames
Wallplates (1-6 openings)
†Not available in custom colors

GRAFIK Eye
Multi-zone dimmers:
    RadioRA
    GRAFIK Systems
    Sivoia QED, AC shading systems

Lutron Matte Finishes

White (WH)	Beige (BE)	Ivory (IV)	Almond (AL)
Light Almond (LA)	Gray (GR)	Taupe (TP)	Sienna (SI)
Brown (BR)	Black (BL)		Custom Colors

Matte Finishes available on these Architectural Style Products

Nova T*
Dimmers
Switches
AC shading
Systems
Fan controls

Nova
Dimmers
Switches

Vareo
Dimmers
Switches
GRAFIK Systems

Keypads
GRAFIK Systems
Sivoia QED

Accessories†
Receptacles/GFCI's
Phone/cable jacks
Multi-port frames
Wallplates (1-6 openings)
†Not available in custom colors

GRAFIK Eye*
Multi-zone dimmers:
    RadioRA
    GRAFIK Systems
    Sivoia QED, AC shading systems
*Special order colors: AL, LA, SI
Also available in gloss finishes:
GWH, GAL, GLA, GIV, GGR, GBR, GBL

Lutron Metal Finishes

Satin Brass (SB)	Bright Brass (BB)	Bright Chrome (BC)
Antique Brass (QB)	Antique Bronze (QZ)	Satin Chrome (SC)
Satin Nickel (SN)	Bright Nickel (BN)
Clear Aluminum (CLA)	Black Aluminum (BLA)	Brass Aluminum (BRA)

Metal Finishes available on these Architectural Style Products

Vareo
Dimmers
Switches
GRAFIK Systems

Nova T*
Dimmers
Switches
AC shading
Systems

Keypads
GRAFIK Systems
Sivoia QED

Wallplates
(1-6 openings)

GRAFIK Eye
Multi-zone dimmers:
    RadioRA
    GRAFIK Systems
    Sivoia QED, AC shading systems

Lutron Accessories

Lutron Fan-Speed Controls with Plate

Lutron 15A and 20A receptacles with Plate

Lutron 15A GFCI receptacles with Plate

Lutron Telephone Jacks with Plate

Lutron Cable Jacks with Plate

Lutron Switches with Plate

Lutron Accessories

Fan-Speed Controls, 15A and 20A receptacles, 15A GFCI receptacles, Telephone Jacks, Cable Jacks and Switches

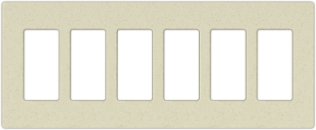

Lutron 1-6 Opening Wallplates

Lutron 1-6 Opening Wallplates

Lutron Maestro Smart Designer Dimmers

Full-range dimming possible from up to ten locations

Ten second fade-to-off (press & hold switch) lets you leave the room before lights go out

Standard 3-way wiring for easy Installation: and retrofit

Multi-location dimmers with designer styling.

Full-range dimming possible from up to ten locations
LEDs show preset light level when product is off
Lights fade up and down smoothly allowing your eyes to adjust to changing light levels
Ten second fade-to-off (press & hold switch) lets you leave the room before lights go out
Standard 3-way wiring for easy Installation: and retrofit

Designer Series Standard Features

Power failure memory
Superior RFI suppression

Lutron controls are rated at 120VAC, 60Hz unless otherwise noted.

This chart is better viewed on a desktop computer or by turning your screen horizontal.

Dimmers
Product	Description	Max. Capacity	Model #
Incandescent
Preset Smart Dimmer	single pole / multi-location	600W	MA-600-
Preset Smart Dimmer	single pole / multi-location	1000W	MA-1000-
Smart Remote	use with MA-600- or MA-1000-	provides full-function dimming from up to 9 additional locations	MA-R-
Magnetic Low-Voltage
Preset Smart Dimmer	single pole / multi-location	600VA (450 W)	MALV-600-
Preset Smart Dimmer	single pole / multi-location	1000VA (800 W)	MALV-1000-
Smart Remote	use with MALV-600- or MALV-1000-	provides full-function dimming from up to 9 additional locations	MA-R-
Electronic Low-Voltage
Preset Smart Dimmer	single pole / multi-location	600W	MAELV-600-
Smart Remote	use with MAELV-600-	provides full-function dimming from up to 9 additional locations	MA-R-
Fluorescent
	For control of Fluorescent loads, use Lutron Hi-Lume FDB or Eco-10 electronic dimming ballasts with MA-600 and Hi-Power 2-4-6

Switches
Product	Description	Model #
Switch	single pole / multi-location	MA-S8AM-
Accessory Switch	Use with MA-S8AM	MA-AS-

Wallplates
Lutron Claro^{™ (below)} designer wallplate or Satin Colors (above) wallplate purchased separately
