Customize Your Tech Lighting Wall Monorail System
Low-voltage heads are fixed to Monorail attached to the wall.
Design your rail.
Choose your lights.
Select your transformer.
(Or start with fixtures and accessories, then decide which layout will best support them.)
Start with a Wall Monorail Kit
Then add any lights (not included)
Further customize your design with additional cable, Standoffs and Supports and Connectors to create longer runs or change directions.
Tech Lighting 700WMKTA300 Wall Monorail Kits
Simplify your design by starting with a Tech Lighting Wall Monorail Kit. Choose any lights to complete you custom Wall Monorail setup.
700WMKTA300C Chrome
700WMKTA300S Satin Nickel
700WMKTA300Z Antique Bronze
You can further customize your design with additional rail, Standoffs and Connectors to create longer runs or create angles.
All Wall Monorail Kits include:
8' long Wall Monorail
Hand-bendable, field-cuttable Wall Monorail in Antique Brass with Brown Insulator, Chrome or Satin Nickel with Clear Insulator.
Decorative End Caps
One set of decorative end caps. Decorative end caps fit into ends of Wall Monorail run for a
finished look.
Three Wall Monorail Standoffs
Positions rail 1" from the wall. Use standoff supports every three feet of Wall Monorail run and at corners. Standoffs can be positioned to cover
points where rails are joined.
12 volt 300 Watt Plug-in Magnetic Remote Transformer with End Power Feed
12 volt 300 watt plug-in magnetic remote
transformer with end power feed with
16' cord.
Tech Lighting 700MOA Wall Monorail
700MOA24 Monorail 24"
700MOA48 Monorail 48"
700MOA96 Monorail 96"
Hand-bendable, field-cuttable Wall Monorail is rated for 300 watts at 12 volts, 600 watts at 24 volts. Each piece of rail is shipped with conductive connectors to join rail pieces end to end.
Color: Insulator is available in clear
and brown.
Finish: Antique Bronze, Chrome, Satin Nickel.
Tech Lighting Wall Archie 700WMARCH
700WMARCH
Clamps to Wall Monorail. 17" long with a 11" high swooping curve. Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts (not included). For Wall Monorail system only.
System: Available for Wall Monorail only.
Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory
Finish: Antique Bronze, Chrome or Satin Aluminum
Tech Lighting Wall Georgi 700WMGRG
700WMGRG
Clamps to Wall Monorail. 18" long with 3" high gentle curve. Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts not included). For Wall Monorail system only.
System: Available for Wall Monorail only.
Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder, Taza Accessory
Finish: Antique Bronze, Chrome or Satin Aluminum
Telescopes from 9" to 25".
Telescopes from 9" to 25".
Tech Lighting Wall Telescope 700WMTEL
700WMTEL
Clamps to Wall Monorail. Telescopes from 9" to 25". Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts (not included). For Wall Monorail system only.
System: Available for Wall Monorail only.
Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder Accessory
Finish: Antique Bronze, Chrome or Satin Aluminum
Tech Lighting Wally Lite 700WMWAL
700WMWAL12 12"
700WMWAL24 24"
Clamps to Wall Monorail. Available in two lengths. Pivots at head to direct beam. Low-voltage, MR16 lamp of up to 75 watts (not included). For Wall Monorail system only.
System: Available for Wall Monorail only.
Accessories & Optical Controls: Backlight Shield, Barndoors, Cone Glass Shield, Flight Paper, Lil Egypt Shade, Lil Wok Shade, Louver Lens Holder, Round Glass Shield, Snap Louver Lens Holder Accessory
Length: 12" or 24"
Finish: Antique Bronze, Chrome or Satin
Aluminum
Tech Lighting 700WMOCHED Wall Monorail FreeJack Connector
Adapts any FreeJack head to Tech Lighting's Wall Monorail system. For Wall Monorail only.
Enables Free Jack Heads to be used with Wall Monorail.
Tech Lighting 700WMOS01 Wall Monorail Standoff
Use standoff supports every three feet of Wall Monorail run and at corners. Standoffs can be po sitioned to cover points where rails are joined. Positions rail 1" from the wall. Order one for every three feet of run.
For best appearance, place the last standoff 4-6" from the end of the rail, and place standoffs symmetrically.
Finish: Antique Bronze, Chrome or Satin Aluminum
Tech Lighting 700WMOCCN Wall Monorail Conductive Connectors
Conductive Connectors join sections of rail together end to end
and are included with all Wall Monorail pieces. Order separately
if cutting and rejoining rails. Pair.
Finish: Antique Bronze, Chrome or Satin Aluminum
Tech Lighting 700WMOCINC Wall Monorail Isolating Connectors
Isolating Connectors join sections of rail and isolate power feeds from each other. All dual-feed canopies are shipped with isolating connectors; order additional if required by layout. Pair.
Tech Lighting 700WMOCFXH Wall Monorail Flexible Horizontal Connectors
Flexible Horizontal Connectors join sections of rail together end to end at desired sharp horizontal angle. Pair.
Finish: Antique Bronze, Chrome or Satin Aluminum
Tech Lighting 700WMOCFXV Wall Monorail Flexible Vertical Connectors
Flexible Vertical Connectors join sections of rail together end to end at desired vertical angle. Pair.
Finish: Antique Bronze, Chrome or Satin Aluminum
Tech Lighting 700WMOCCAP Wall Monorail End Caps
Decorative end caps fit into ends of Wall Monorail run for a finished look. Pair; order one pair for each end.
Finish: Antique Bronze, Chrome or Satin Aluminum
Wall Standoffs to Cantilever from a Wall
There are two types of outside riggers—one for power, one for support. Both types of outside rigger extend 36" from the wall and are field-cuttable.
Tech Lighting 700MOSORG Monorail Support Outside Rigger
700MOSORG Monorail Support Outside Rigger
Extends from the wall, to support the rail. Use every three feet of run.Tech Lighting 700MOPORG2 Monorail Power Outside Rigger
700MOPORG2 Monorail Power Outside Rigger ,
Extends 36" from the wall to support and power rail from a remote transformer. Field-cuttable. Includes 4" round canopy and 2" square canopy.Finish: Antique Bronze, Chrome or Satin Nickel

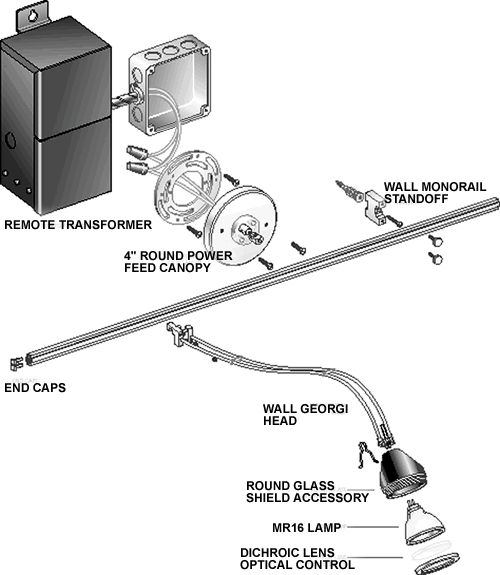

How do I design my own Wall Monorail?
First: Choose Wall Monorail
heads.
Choose accessories, if desired.
Choose lamps, 12 or 24 volt, that do not
exceed maximum wattage of element or accessory.
Choose finish of system.
Use a scaled drawing as a reference.
A) Decide where you want the rail to run.
b) Sketch it to scale, so you know what
Length you want.
Measure Length of Wall Monorail run; determine
quantity and Length of Monorail pieces required.
Specify one pair of End Caps for each open
end of run.
Determine number of Standoffs needed, one
for every three feet of run.
Select Either
Remote Transformer
Choose:
Magnetic or electronic
12 volt or 24 volt
Single or dual-feed Specify a Power Feed
Canopy, single or dual-feed. (if using a
dual feed transformer be sure to order two
canopies)
OR
Surface Transformer
Note: if using a Kable Lite Surface Transformer
the transformer must be mounted adjacent
to run.
Choose:
Magnetic or electronic
12 volt or 24 volt
Single Specify a Center Power Feed or End
Power Feed Connector and determine part
number.
|
|
|
*Wattage of the transformer must meet or exceed wattage of lamps.
If powering system with more than one transformer, add Isolating Connectors to isolate the feeds from each other.
Mounting:
Order Wall Monorail Standoffs.
This outline covers only the most common Wall Monorail applications.
Checklist
Make sure your Bill of Materials includes:
Transformer
Power Feed Canopy (for Remote Transformer)
End or Center Power Feed (for Surface Transformer)
Isolating Connectors (if necessary)
Standoffs (one for every three feet of run)
Wall Monorail
End Caps (one pair for each open end)
Elements
Lamps
Accessories and Optical Controls
Make sure all finishes match and product numbers end with C (Chrome), G () or S (Satin Nickel)
You're done!
| Item | Quantity | Number | Description |
| A | 4 | 700WMGRGC | WMO-Georgi, chrome |
| B | 4 | 300BLV116 | 12v 75 watt MR16 lamp, GE EYC 38° |
| C | 1 | 700MOA96C | Monorail 96", chrome |
| C | 1 | 700MOA24C | Monorail 24", chrome |
| D | 2 | 700MOCCAPC | End Caps, pair, chrome |
| E | 1 | 700AT300T | Remote Magnetic Transformer, 12v 300 watts |
| F | 1 | 700WMOP2SQC | Power Feed Canopy, 2" square, chrome |
| G | 3 | 700WMOS01C | Wall Monorail Standoffs, chrome |
Satin Nickel Wall Monorail with Aero shown with Amber Round Glass Shield
Tech Lighting Wall Monorail
Wall Monorail is a specialty low-voltage lighting system designed for gallery-style illumination. Specifically designed to bring light where you want to draw attention: artwork, merchandise or a company logo. With our new Wall Monorail FreeJack connector you can now select many more FreeJack compatible heads for use on a Wall Monorail system. Wall Monorail is also now available in our new Antique Bronze finish.
Wall Monorail is a specialty system designed to help draw attention to visual displays or markers.
Incorporates same rail and finish options used on the Monorail system
A great solution for tough-to-illuminate areas where ceiling meets wall
Complete selection of compatible FreeJack fixtures available by incorporating Tech Lighting's FreeJack adapter
The rail is low-voltage conductor of two individual conductive metal pieces fused together by a plastic separator. Hand-bendable, field-cuttable Wall Monorail is rated for 300 watts at 12 volts, 600 watts at 24 volts. Each piece of rail is shipped with conductive connectors to join rail pieces end to end. Order additional connectors if cutting and rejoining rails. Standard Monorail bends horizontally to a radius as small as 6" and vertically to a radius as small as 24". The Insulator is available in clear and brown.
